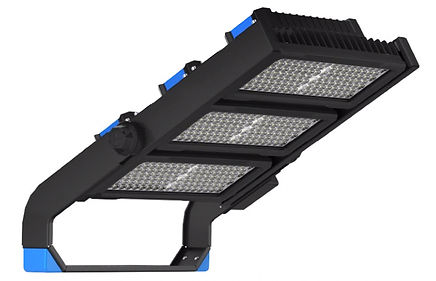

HMC Series

HMC Series
  • Corrosion Resistant Polyester Powdercoat

  • Over 15 Optical Lenses Available For Any Application

  • UL, DLC, CE, & RoHS Certified

  • Die-Cast Aluminum Housing

  • IP67 Weatherproof Rating

  • 50,000 Hour Rated Lifetime

  • 5 Year Limited Manufacturers Warranty

Product Description

The HMC series is usually attached to a high pole used to shine light on large areas. Practical applications include high ways, recreational sports arenas, airports and other large outdoor commercial facilities. The HMC series has a modular design allowing for easy maintenance and the opportunity for each individual module to be replaced in the event of a failure without any tools . Furthermore, the beam angle can be adjusted for each module due to its modular design. Designed for automotive dealership front lines, exterior retail applications, and other high-lumen applications requiring high color quality. The Series is both UL and DLC certified meaning rebates are available.

Specifications - HMC Series
  • LifeLux™ STD Rating

  • Fluorescent Replacement: HPS and Metal Halide Stadium Lights

  • Power:250W, 300W, 400W, 500W, 750W, 1000W, 1250W

  • Voltage:100-277V, 347-480V

  • Lumen Output: 37,500-187,500 Lumens

  • Lumen Efficiency: 150 Lm/W

  • Color Temperature:3000K, 4000K, 5000K, 5700K, 6000K

  • Design Life:50,000 hrs

  • Beam Angle:Type 1,2,3,4,5

  • CRI:>70

  • Power Factor:>0.95

  • Warranty:5 Year Manufacturers Limited Warranty

  • Driver Type:  Phillips Titanium Series

  • LED Type:  Cree

  • Exterior Housing Colors:  Grey, Black, Bronze & White - Custom Colors Per Request

Dimensions
  • 450W:  24.5" x 26.77" x 4.4" - 44.0 lbs

  • 600W:29.2" x 26.77" x 4.4" - 50.84 lbs750W: 36.3" x 26.77" x 4.4" - 60.63 lbs

  • 900W: 41.0" x 26.77" x 4.4" - 68.30 lbs
